Statek CX20SHG1CSM1-16.0M, 30/50/-/I, 9pF超小型石英晶体16-100MHz

发布时间：2025-06-11 08:55:06 浏览：779

　　Statek CX20 AT-CUT晶体，频率范围16 MHz至100 MHz，封装尺寸2.5 x 1.2mm。

　　应用领域

　　医疗设备(如心脏节律管理、神经刺激器)

　　无线通信(如低功耗蓝牙、医疗遥测)

　　国防和工业通信

　　关键规格

Fundamental Frequency	16.0 MHz	24.0 MHz
Motiona Resitance R? (Ω)	150	50
Motional Capacitance C? (fF)	1.2	1.6
Quality Factor Q	60,000	80,000
Shunt Capacitance C? (pF)	0.7	0.8
Calibration Tolerance?	±30 ppm,or tighter as required
Load Capacitance	9pF(unless specified otherwise)
Drive Level	100 μW MAX
Frequency-Temperature Stability?2	±50 ppm to±10 ppm(Commercial) ±100 ppm to ±30 ppm(Industrial) ±100 ppm to ±40 ppm(Military)
Aging,First Year	3 ppm MAX
Shock Survival	Up to 75,000 g,0.3 ms,Y sine
Vibration Survival?	20 g,10-2,000 Hz swept sine
Operating Temperature Range	-10℃ to+70℃(Commercial) -40℃ to +85℃(Industrial) -55℃ to+125℃(Military)
Storage Temperature Range	-55℃ to +125℃
Max Process Temperature	260℃ for 20 seconds
Moisture Sensitivity Level(MSL)	This component is hermetically sealed and is not moisture sensitive.

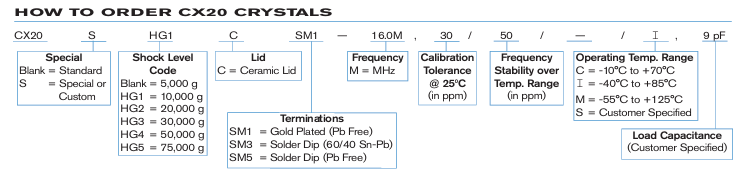

　　订购指南：

Statek CX20SHG1CSM1-16.0M, 30/50/-/I, 9pF超小型石英晶体订购指南

Statek是一家成立于1970年的高科技公司，专注于设计和制造小型化、高可靠性的石英晶体、振荡器和传感器。其产品广泛应用于高冲击、高振动环境，如GPS、无线通讯等领域。深圳市3118云顶集团创展科技公司优势代理分销Statek晶振产品，欢迎咨询了解。
